Selective Amplifiers

Installation amplifier

SD125.4

Four channels of 125 W, 500 W shared across channel pairs, low-impedance or 70/100 V output, and set-up over the unit’s own wireless access point — in a half-rack 1U chassis.

Dimensions
44 × 220 × 319 mm
Weight
2.8 kg
Standby
Under 0.6 W
The SD125.4 front panel: model number at the left, a five-row status legend reading Status, Input, Output, Network and WiFi beside five LED windows, and the selective wordmark at the right. The panel cycles between standby — Status pulsing green, Input and Output unlit, Network and WiFi lit — and normal operation with all five green. SD125.4 Status Input Output Network WiFi
SD125.4 front panel, drawn from the panel artwork.
Output, 4 Ω / 8 Ω 125W × 4
70 / 100 V line 250W × 2
Total system power 500W
Chassis 1Uhalf-rack

At a glance

SD125.4
Power Share

Automatic, across each channel pair

Channels 1 and 2 share the supply, and so do channels 3 and 4. When one channel briefly asks for more than its continuous rating while its partner asks for less, the spare power is made available automatically. Nothing to set.

Distribution

Lo-Z and 70/100 V from one chassis

Four low-impedance channels driving 4 Ω to 16 Ω, or two constant-voltage outputs at 250 W — with no external transformer between them.

Configuration

Configured in a browser

The amplifier hosts its own access point and its own web app. Join its Wi-Fi, open a browser, and configure inputs, zones, outputs and settings. Nothing to install on anything.

Output stage

UMAC™1 Class D

A full-bandwidth PWM modulator with ultra-low distortion, fed by a UREC™2 universal switch-mode supply with power-factor correction.

Protection

Five circuits

Short circuit, DC, undervoltage, temperature and overload.

Signal processing

Per-zone and per-output

EQ, crossover and gain, delay and driver alignment, polarity, compression and limiting, with speaker presets that can be customised, exported and imported.

Cooling

Fan-cooled, and quiet when idle

Fan speed follows temperature, and the fan switches off entirely when the amplifier drops into standby. Keep the ventilation apertures clear.

Standby

Under 0.6 W

The unit draws 150 W in use and under 0.6 W asleep. It wakes on signal, on a network command, or on a 12 V trigger.

Power Share

Across each channel pair

The published output figures are not two different amplifiers. They are one 500 W supply, divided two ways.

Each pair of channels draws on a 250 W budget. Run evenly, that is 4 × 125 W across four zones. Collapse each pair onto a single channel and it is 2 × 250 W. The total is the same either way, and so is the amplifier.

None of it is a setting. The amplifier does this by itself: when one channel briefly demands more than its continuous rating and its partner is demanding less, the spare power is handed across automatically. It is there to hold up under music, which is the load that actually asks for it.

Power Share Four channels, 125 W each
Ch 1 125W
250 W shared
Ch 2 125W
Ch 3 125W
250 W shared
Ch 4 125W
Total allocated 500W of 500 W
Move either split to see the pair redistribute. The total does not change.

Front panel

Five indicators

The panel prints its own legend: five indicators in a column, each labelled, framed by two hairlines that break around them. It reports at a glance what the unit is doing, without a screen to read or a menu to walk.

Indicator behaviour as published in the SD125.4 user manual, firmware V1.8.0.

Indicators
Status Off — mains power disconnected. Green — amplifier operational. Pulsing green — standby. Amber — standby triggered over GPIO.
Input Off — no input signal. Green — signal present on one or more inputs. Amber — limiting or clipping on one or more inputs.
Output Off — no output signal. Green — signal present on one or more outputs. Amber — limiting or clipping on one or more outputs. Red — a channel pair is in overload or protection.
Network Off — no Ethernet network detected. Green — Ethernet network detected.
WiFi Off — Wi-Fi disabled. Green — Wi-Fi enabled.
The SD125.4 front panel: model number at the left, a five-row status legend reading Status, Input, Output, Network and WiFi beside five LED windows, and the selective wordmark at the right. Status is pulsing green and the unit is in standby; Network and WiFi remain lit. SD125.4 Status Input Output Network WiFi
Standby
The SD125.4 front panel: model number at the left, a five-row status legend reading Status, Input, Output, Network and WiFi beside five LED windows, and the selective wordmark at the right. All five indicators are green and the unit is operating normally. SD125.4 Status Input Output Network WiFi
Running

Connections

Rear panel

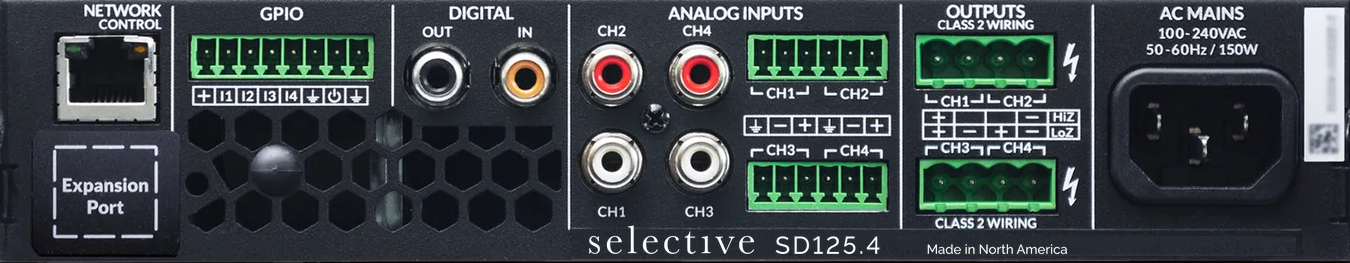

Signal connections are made on RCA phono and Euroblock connectors, with a stereo S/PDIF digital input and a stereo S/PDIF output for daisy-chaining. A GPIO Euroblock connector exposes some amplifier functions to external control, and the unit connects to a network over RJ45 Ethernet or Wi-Fi. Mains arrives on an IEC 60320 socket; there is no power switch, and the amplifier is operational as soon as it is connected.

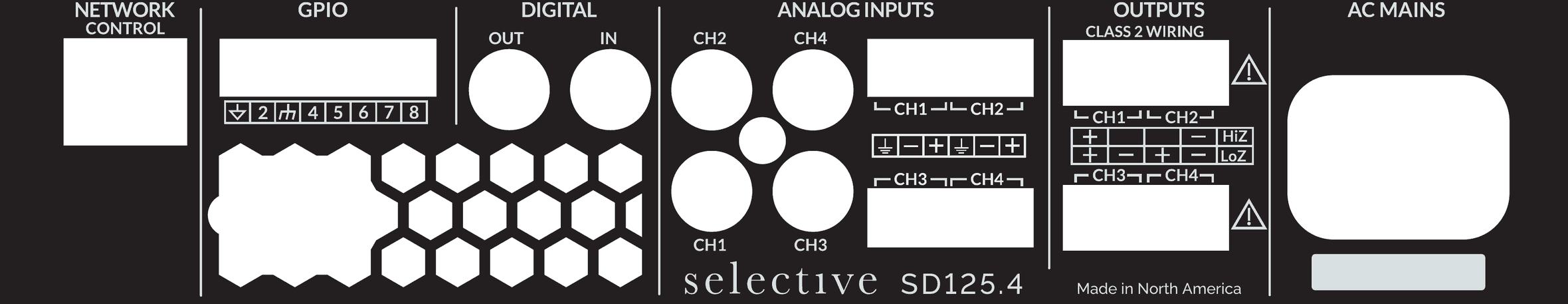

The SD125.4 rear panel artwork, left to right: Network Control, GPIO with a ventilation array below it, Digital S/PDIF out and in, four analogue inputs on RCA with Euroblock terminals for CH1 to CH4, the speaker outputs with their Hi-Z and Lo-Z selector and CLASS 2 WIRING warnings, and the AC mains inlet.
Rear panel, drawn from the panel artwork. The pale shapes are the apertures the connectors pass through, so this is the panel legend rather than a photograph of a populated unit.

Outputs are marked CH 1 to CH 4 and carry a CLASS 2 WIRING warning: do not touch the output terminals while the amplifier is powered.

Distribution

Lo-Z and 70 / 100 V

Low impedance

Four zones, one residence · 4 Ω / 8 Ω

Ch 1 125W

Living room Nakymatone invisible

2 speakers · 8 Ω

Ch 2 125W

Kitchen Nakymatone invisible

2 speakers · 8 Ω

Ch 3 125W

Listening room Waterfall Audio glass

2 speakers · 4 Ω

Ch 4 125W

Courtyard Architettura Sonora

4 speakers · 8 Ω

4 zones · 10 speakers 500W of 500 W

70 / 100 V line

Two runs, one venue · constant voltage

Ch 1/2 250W

Main floor Gray Sound

10 speakers · 20 W taps · 200 W of 250 W

Ch 3/4 250W

Terrace Architettura Sonora

6 speakers · 30 W taps · 180 W of 250 W

2 zones · 16 speakers 500W of 500 W
The same amplifier wired two ways: four low-impedance zones, or two constant-voltage runs.

Application types

Specification

SD125.4
Output
Channels4 × Lo-Z (4 Ω – 16 Ω) / 2 × Hi-Z (70V / 100V)
Output power @ 4 Ω / 8 Ω4 × 125 W
Output power @ 70V / 100V2 × 250 W
Power Share (up to)2 × 250 W, across each channel pair (Ch 1/2, Ch 3/4)
Total system power500 W
Output voltage70 Vp / 140 Vpp unloaded — bridged 140 Vp / 280 Vpp
Output circuitryUMAC™ Class D — full-bandwidth PWM modulator, ultra-low distortion
Performance
Signal-to-noise ratio> 106 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω)
THD+N (typical)< 0.05% (20 Hz – 20 kHz, 8 Ω, 3 dB below rated power)
Frequency response20 Hz – 20 kHz (+0 / −0.8 dB, 8 Ω, 3 dB below rated power)
Input impedance20 kΩ balanced / 10 kΩ unbalanced
Power
Power supplyUREC™ universal switch-mode with PFC and standby converter
Operating voltageUniversal mains, 100–240 V, 50–60 Hz
Power consumption150 W
Standby consumption< 0.6 W
Power ratings1% THD @ 120 Vac and 230 Vac
ProtectionShort circuit, DC, undervoltage, temperature, overload
Physical
Dimensions44 × 220 × 319 mm (1.7 × 8.7 × 12.6 in) — half-rack 1U
Weight2.8 kg (6.2 lbs)
Operating temperature0 – 40 °C, indoor, below 2000 m
CoolingFan-cooled, temperature-controlled; fan off in standby
Ventilation80 mm clearance to the ventilated faces

100V line mode operates @ −1 dB (≈ 90 V).

All specifications

In the box

  • Amplifier unit
  • Mains power cable for the sales territory
  • Input connector × 2
  • GPIO socket connector × 1
  • Output connector × 2
  • Adhesive rubber feet × 4
  • Document pack

Mounting hardware

Rack ears2
½ rack plate extension1
½ rack mounting plates2
Rear supports2

Documentation

Specification sheets and installation documentation for the SD125.4 are in production. Ask and we will send what exists today.

Request documentation

Terms

As the manufacturer states them
  1. UMAC™ — the manufacturer’s name for the output stage: a full-bandwidth PWM modulator with ultra-low distortion, quoted here as the manual states it.

    Full-bandwidth is the part that can be checked: signal-to-noise, distortion and frequency response are all quoted across the whole 20 Hz – 20 kHz band into a real load, rather than at one convenient frequency.

    Output stage

  2. UREC™ — the manufacturer’s name for the power supply: a universal mains switch-mode supply with Power Factor Correction and a separate standby converter.

    Universal means one unit for any territory — 100 V to 240 V, 50 or 60 Hz. The standby converter is what holds standby draw under 0.6 W.

    In the rack

Specifying the SD125.4?

Selective Amplifiers are sold through custom-installation dealers and specifiers. Tell us the zones, the speaker types, and whether the runs are low impedance or 100 V, and we will confirm the configuration.
